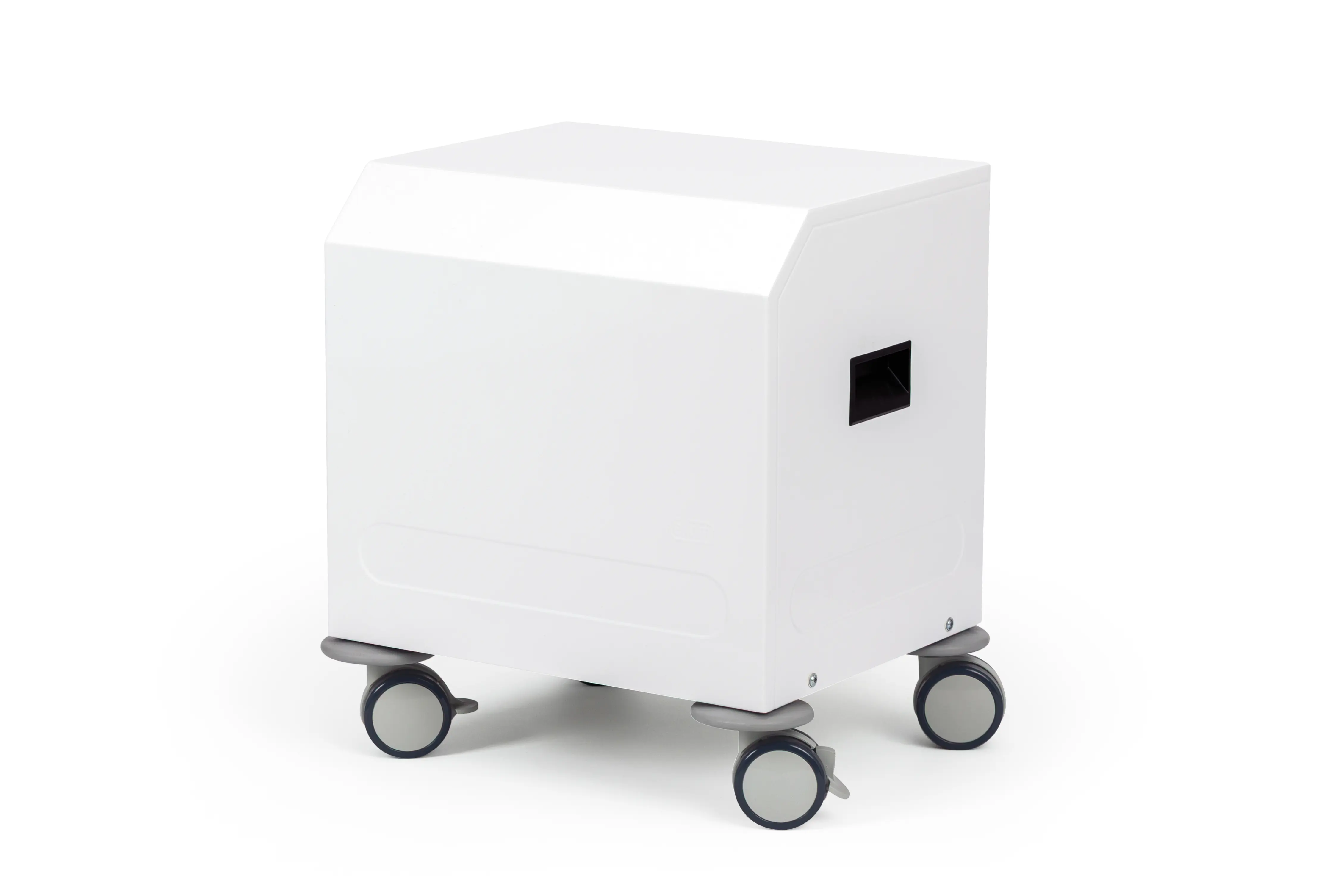

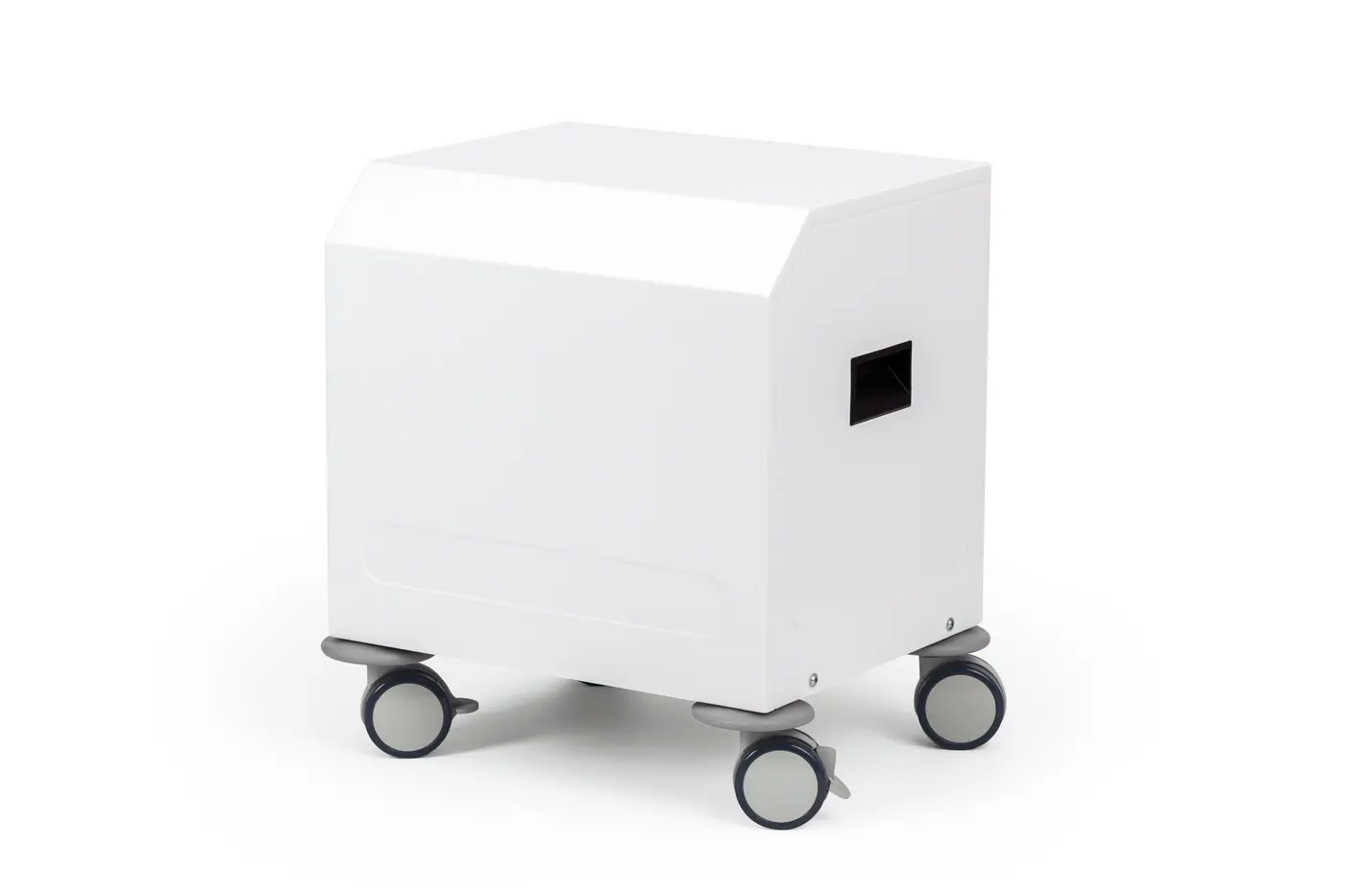

Compact and quiet mobile laboratory compressor
A source of clean, dry, and oil-free compressed air for laboratories and industrial applications, where a precise and stable output pressure is required. Featured membrane dryer ensures optimal pressure dew point. Easy-to-use pressure regulator and display allow the outlet pressure to be adjusted simply and precisely.
DK50 DL
with dryer| DK50 DL | |
|---|---|
|
Dryer |
✔ (MD) |
|
Nominal voltage / frequency |
230 V / 50 Hz 230 V / 60 Hz 100 V / 50 Hz 100 V / 60 Hz 120 V / 60 Hz |
|
Air tank capacity |
2 l |
|
Working pressure |
5.8 bar |
|
Efficiency |
30 l.min-1 / 7 bar |
|
Duty cycle |
S1 - 100 % |
|
Degree of air drying (pressure dew point PDP) |
+3 °C at 7 bar |
|
Weight |
36 kg |
|
Dimensions |
470 x 380 x 505 mm |
|
Filtration of air to |
0.3 μm |
|
Outlet connection |
MCD1602 |
- Data on weight and dimension are for informational purposes only
- Technical modifications are subject to change
