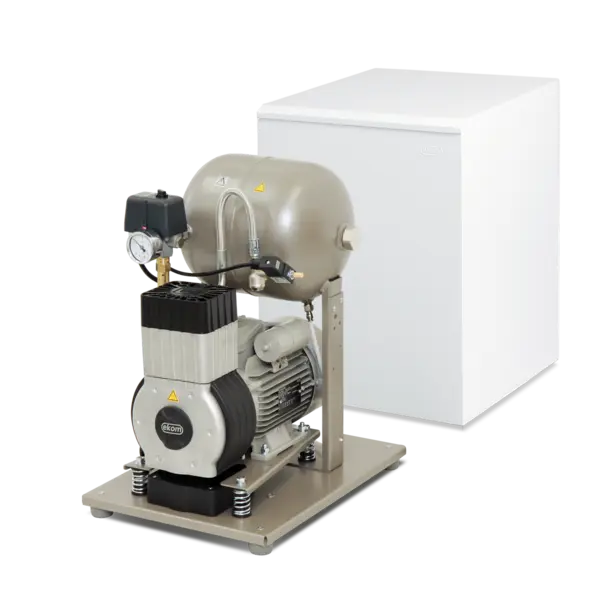

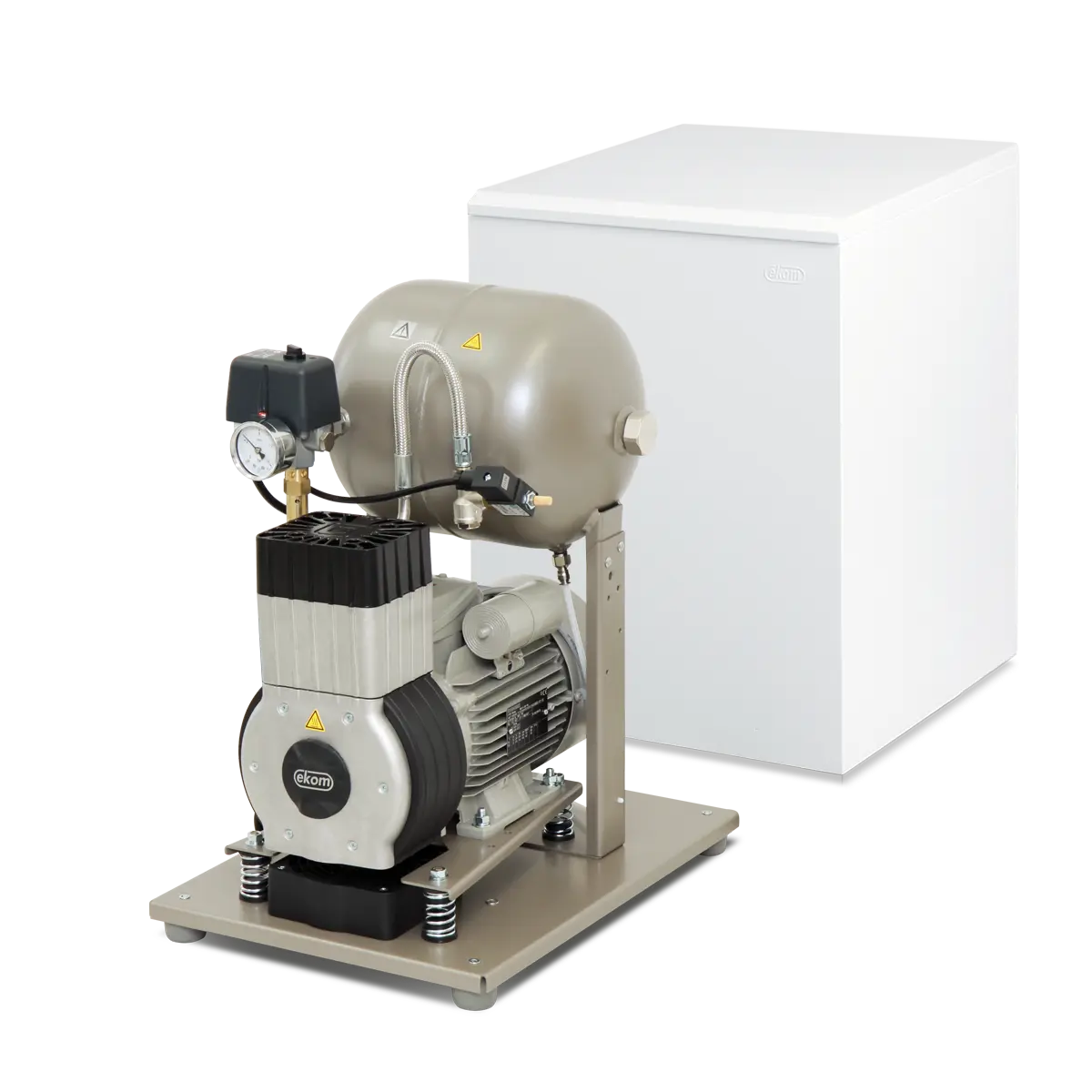

DK50-10 Z
without noise reduction cabinetDK50-10 Z/M
without noise reduction cabinet, with dryer- With membrane dryer
- With adsorption dryer
DK50-10 S
with noise reduction cabinetDK50-10 S/M
with noise reduction cabinet, with dryer- With membrane dryer
- With adsorption dryer
| DK50-10 Z | DK50-10 S | |
|---|---|---|
|
Dryer |
✘ |
✘ |
|
Noise reduction cabinet |
✘ |
✔ |
|
Number of dental units |
1 |
1 |
|
Nominal voltage / frequency |
230 V / 50 (60) Hz 115 V / 60 Hz |
230 V / 50 (60) Hz 115 V / 60 Hz |
|
Motor performance |
0.55 kW |
0.55 kW |
|
Air tank capacity |
10 l |
10 l |
|
Compressor efficiency (working pressure 6 - 8 bar) |
70 l.min-1 / 6 bar (50 Hz) 80 l.min-1 / 6 bar (60 Hz) |
70 l.min-1 / 6 bar (50 Hz) 80 l.min-1 / 6 bar (60 Hz) |
|
Compressor efficiency (working pressure 8 - 10 bar) |
60 l.min-1 / 8 bar (50 Hz) 70 l.min-1 / 8 bar (60 Hz) |
60 l.min-1 / 8 bar (50 Hz) 70 l.min-1 / 8 bar (60 Hz) |
|
Duty cycle |
S1 - 100 % |
S1 - 100 % |
|
Noise level |
≤ 64 dB (A) (50 Hz) ≤ 66 dB (A) (60 Hz) |
≤ 46 dB (A) (50 Hz) ≤ 49 dB (A) (60 Hz) |
|
Weight |
38 kg |
53 kg |
|
Dimensions |
485 x 350 x 555 mm |
580 x 440 x 655 mm |
| DK50-10 Z/M | DK50-10 S/M | |
|---|---|---|
|
Dryer |
✔ (MD) |
✔ (MD) |
|
Noise reduction cabinet |
✘ |
✔ |
|
Number of dental units |
1 |
1 |
|
Nominal voltage / frequency |
230 V / 50 (60) Hz 115 V / 60 Hz |
230 V / 50 (60) Hz 115 V / 60 Hz |
|
Motor performance |
0.55 kW |
0.55 kW |
|
Air tank capacity |
10 l |
10 l |
|
Compressor efficiency (working pressure 6 - 8 bar) |
60 l.min-1 / 6 bar (50 Hz) 70 l.min-1 / 6 bar (60 Hz) |
60 l.min-1 / 6 bar (50 Hz) 70 l.min-1 / 6 bar (60 Hz) |
|
Compressor efficiency (working pressure 8 - 10 bar) |
50 l.min-1 / 8 bar (50 Hz) 60 l.min-1 / 8 bar (60 Hz) |
50 l.min-1 / 8 bar (50 Hz) 60 l.min-1 / 8 bar (60 Hz) |
|
Duty cycle |
S1 - 100 % |
S1 - 100 % |
|
Degree of air drying (pressure dew point PDP) |
+3 °C at 7 bar +3 °C at 9 bar |
+3 °C at 7 bar +3 °C at 9 bar |
|
Noise level |
≤ 65 dB (A) (50 Hz) ≤ 67 dB (A) (60 Hz) |
≤ 49 dB (A) (50 Hz) ≤ 52 dB (A) (60 Hz) |
|
Weight |
44 kg |
61 kg |
|
Dimensions |
545 x 350 x 555 mm |
650 x 440 x 655 mm |
| DK50-10 Z/M | DK50-10 S/M | |
|---|---|---|
|
Dryer |
✔ (ADS) |
✔ (ADS) |
|
Noise reduction cabinet |
✘ |
✔ |
|
Nominal voltage / frequency |
230 V / 50 (60) Hz |
230 V / 50 (60) Hz |
|
Motor performance |
0.55 kW |
0.55 kW |
|
Air tank capacity |
10 l |
10 l |
|
Compressor efficiency (working pressure 6 - 8 bar) |
70 l.min-1 / 6 bar (50 Hz) 80 l.min-1 / 6 bar (60 Hz) |
70 l.min-1 / 6 bar (50 Hz) 80 l.min-1 / 6 bar (60 Hz) |
|
Duty cycle |
S3 - 70 % |
S3 - 70 % |
|
Degree of air drying (pressure dew point PDP) |
-20 °C at 7 bar -20 °C at 9 bar |
-20 °C at 7 bar -20 °C at 9 bar |
|
Noise level |
≤ 64 dB (A) (50 Hz) ≤ 67 dB (A) (60 Hz) |
≤ 51 dB (A) (50 Hz) ≤ 53 dB (A) (60 Hz) |
|
Weight |
45 kg |
62 kg |
|
Dimensions |
350 x 555 x 555 mm |
440 x 650 x 655 mm |
