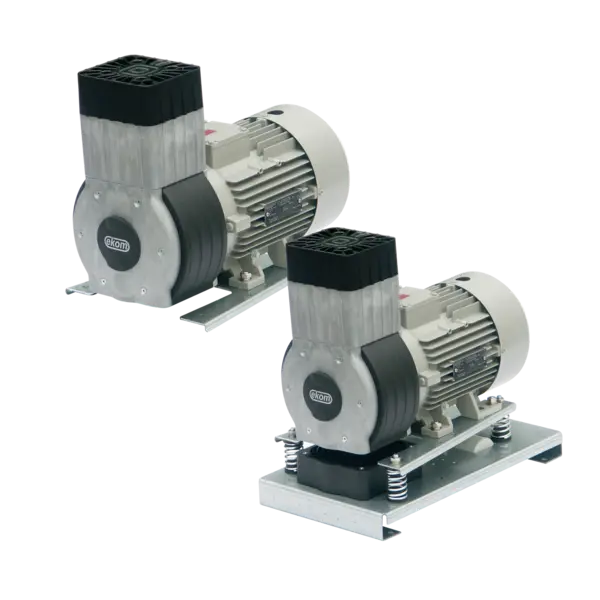

AJ50
AJ70
| AJ50 | AJX50 | |
|---|---|---|
|
Fan |
✘ |
✔ |
|
Nominal voltage / frequency |
230 V / 50 Hz |
230 V / 50 Hz |
|
Motor performance |
0.37 kW |
0.37 kW |
|
Max. working pressure |
7 bar |
7 bar |
|
Efficiency |
50 l.min-1 / 5 bar |
50 l.min-1 / 5 bar |
|
Duty cycle |
S3 – 30 % |
S1 – 100 % |
|
Noise level |
≤ 65 dB (A) |
≤ 66 dB (A) |
|
Weight |
15 kg |
19 kg |
|
Dimensions |
235 x 325 x 285 mm |
240 x 400 x 365 mm |
| AJ70 | AJX70 | |
|---|---|---|
|
Fan |
✘ |
✔ |
|
Nominal voltage / frequency |
230 V / 50 (60) Hz 400 V / 50 Hz |
230 V / 50 (60) Hz 400 V / 50 Hz |
|
Motor performance |
0.55 kW 1.2 kW (400 V) |
0.55 kW 1.2 kW (400 V) |
|
Max. working pressure |
8 bar 10 bar (400 V) |
8 bar 10 bar (400 V) |
|
Efficiency |
75 l.min-1 / 5 bar (50 Hz) 85 l.min-1 / 5 bar (60 Hz) |
75 l.min-1 / 5 bar (50 Hz) 85 l.min-1 / 5 bar (60 Hz) |
|
Duty cycle |
S3 – 30 % |
S1 – 100 % |
|
Noise level |
≤ 66 dB (A) |
≤ 66 dB (A) |
|
Weight |
24 kg |
29 kg |
|
Dimensions |
235 x 420 x 310 mm |
240 x 430 x 385 mm |
- Data on weight and dimension are for informational purposes only
- Technical modifications are subject to change
