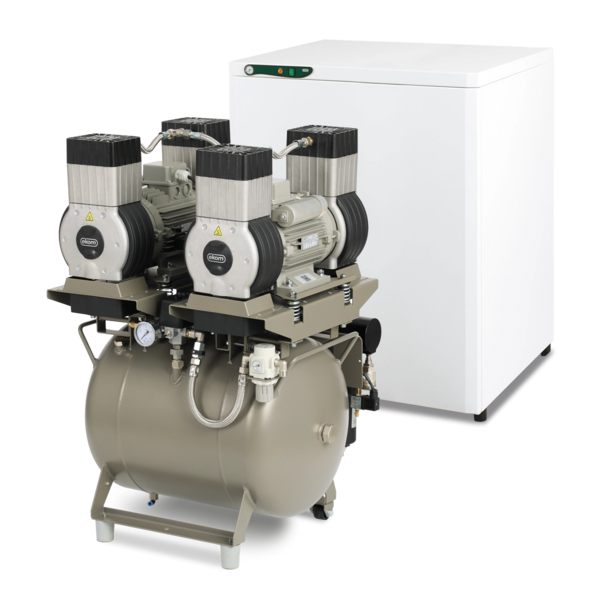

DK50 2x2R/50

Oil-free, twin compressor designed as a universal source of dry, clean compressed air for laboratory equipment and various industrial applications.

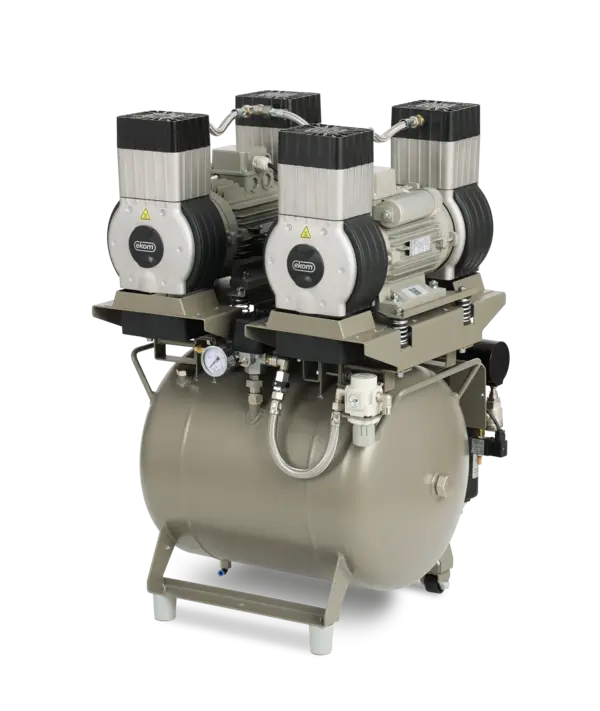

without noise reduction cabinet, with dryer

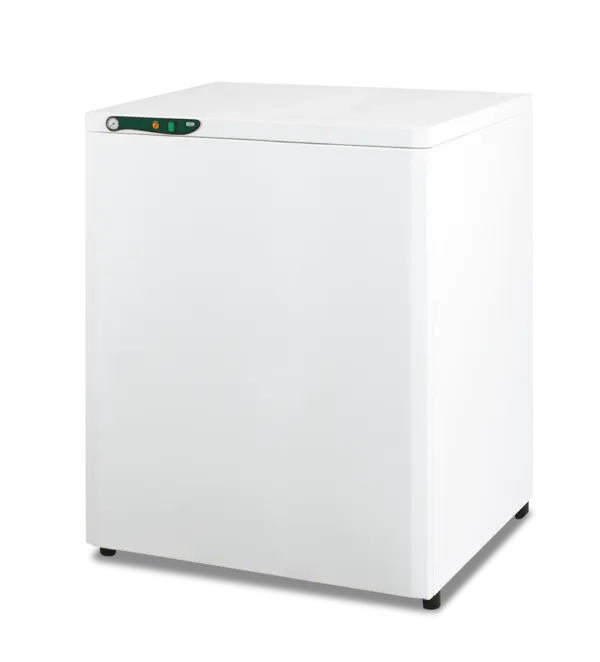

with noise reduction cabinet, with dryer

	DK50 2x2R/50/M	DK50 2x2R/50S/M
Dryer	✔ (MD)	✔ (MD)
Noise reduction cabinet	✘	✔
Nominal voltage / frequency	230 V / 50 Hz	230 V / 50 Hz
Motor performance	1.1 kW	1.1 kW
Air tank capacity	50 l	50 l

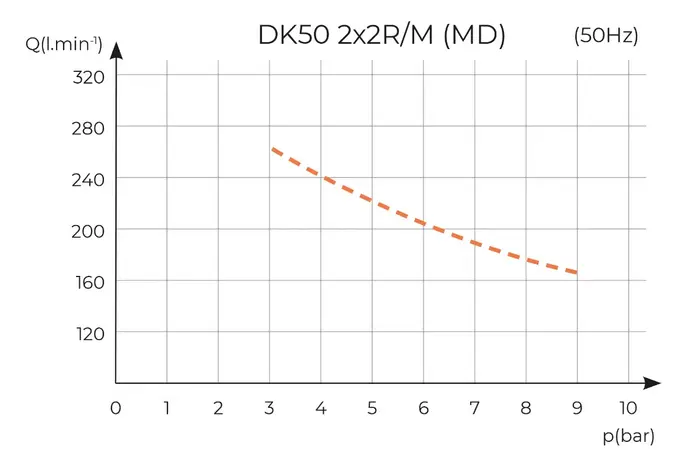

Compressor efficiency (working pressure 6 - 8 bar)	205 l.min^-1 / 6 bar	205 l.min^-1 / 6 bar
Duty cycle	S1 - 100 %	S1 - 100 %
Degree of air drying (pressure dew point PDP)	3 °C (PDP)	3 °C (PDP)
Noise level	≤ 71 dB (A)	≤ 56 dB (A)
Weight	110 kg	166 kg
Dimensions	580 x 680 x 860 mm	750 x 778 x 1015 mm

- Data on weight and dimension are for informational purposes only

- Technical modifications are subject to change
